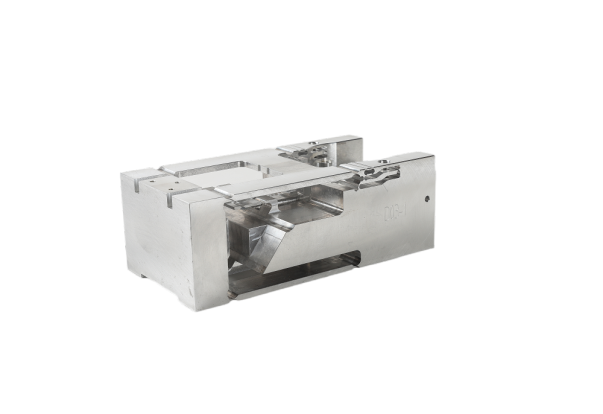

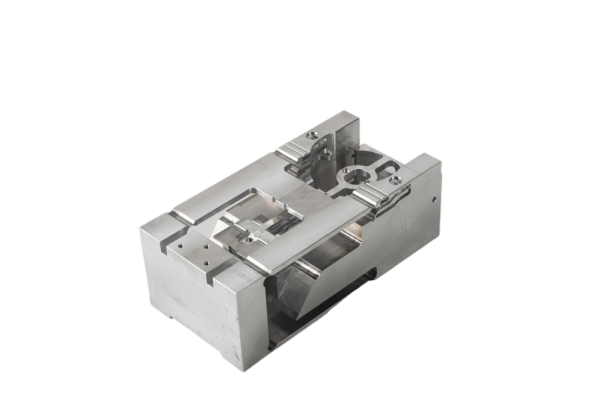

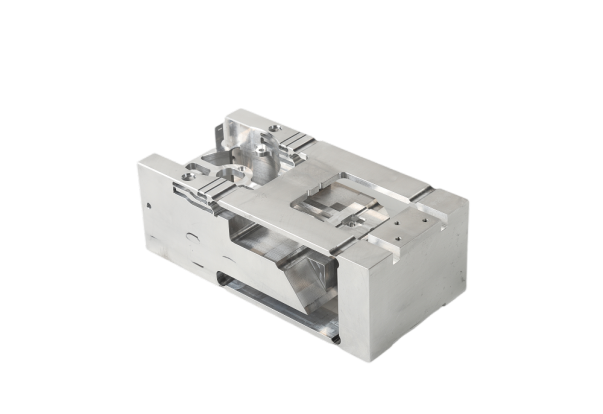

Weighing Modules JD-MK
PRODUCT FEATURE
◆ Advanced single module electromagnetic force sensor, higher weighing accuracy, better performance and more reliable
◆304 stainless steel shell fully sealed, safe and reliable, strong and durable with temperature compensation and drift compensation, good stability, small drift * smaller volume, more suitable for installation in the production line, test line, size can be customized
◆ Pan size is customizable
◆AC/DC power adapter
◆ With RS232/485 interface
◆ The products are widely used in the field of automatic measurement, such as pharmaceutical, food, military, battery, photovoltaic and other industries of automatic measurement, automatic production line, etc. Designed for automatic production line, using single electromagnetic force sensor, high sensitivity, high stability, can be customized according to user needs to meet the needs of mechanical equipment integration.
◆304 stainless steel shell fully sealed, safe and reliable, strong and durable with temperature compensation and drift compensation, good stability, small drift * smaller volume, more suitable for installation in the production line, test line, size can be customized
◆ Pan size is customizable
◆AC/DC power adapter
◆ With RS232/485 interface
◆ The products are widely used in the field of automatic measurement, such as pharmaceutical, food, military, battery, photovoltaic and other industries of automatic measurement, automatic production line, etc. Designed for automatic production line, using single electromagnetic force sensor, high sensitivity, high stability, can be customized according to user needs to meet the needs of mechanical equipment integration.
JD-4MK
- CAPACITY：110 g ～ 220gg
- READABILITY：0.0001g
- REPEATABILITY：±0.0001g
- LINEARITY：±0.0002g
- PAN SIZE：φ48 mm
- WEIGHT：1.8kg
- EXT DIMESION：193 x 116 x 68 mm
JD-3MK
- CAPACITY：100 g ～500g
- READABILITY：0.001g
- REPEATABILITY：±0.001g
- LINEARITY：±0.002g
- PAN SIZE：φ48 mm
- WEIGHT：1.8kg
- EXT DIMESION：193 x 116 x 68 mm
JD-2MK
- CAPACITY：1000 g ～ 5000g
- READABILITY：0.01g
- REPEATABILITY：±0.01g
- LINEARITY：±0.02g
- PAN SIZE：φ48 mm
- WEIGHT：1.8kg
- EXT DIMESION：193 x 116 x 68 mm
PRODUCT FUNCTIONS
◆One percent (0.01g), automatic external calibration
◆Overloading/underloading alarm, the temperature compensation, tare of full weighing range, accumulative/regressive features.
◆Overloading/underloading alarm, the temperature compensation, tare of full weighing range, accumulative/regressive features.
◆Multiple weighing units conversion and data output, g, ct, oz etc..
◆Measuring way: counting, percentage, etc. for the different weighing.
◆Standard RS232 output interface connected with the computer and printer etc..
◆Density measurement (Optional parts of the density devices).
◆Optional under hook device
◆Optional calibration weight
